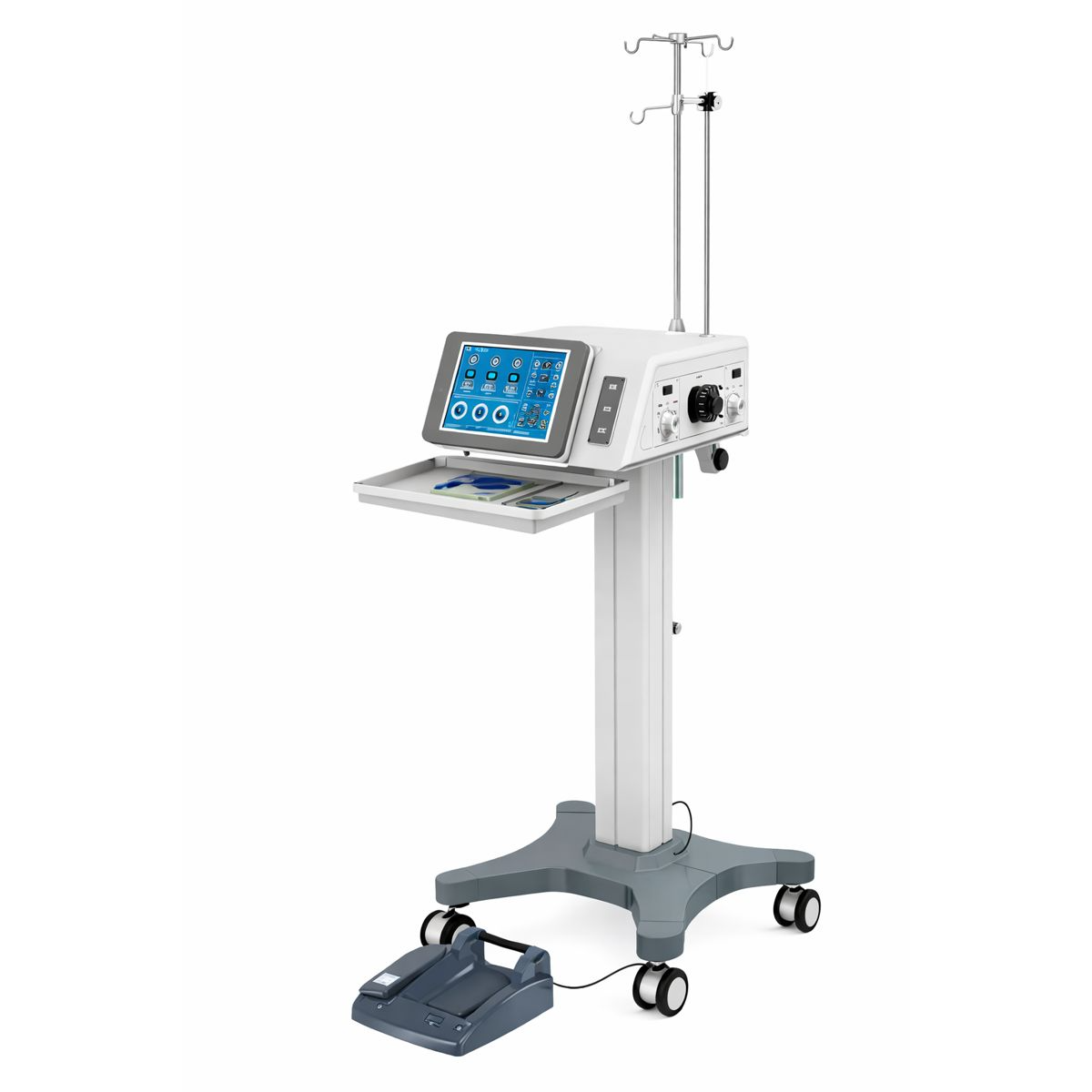

Turbo Orbit—The Future of Next-Generation Ophthalmic Surgery
Turbo Orbit represents the next generation of advanced ophthalmic surgical systems, combining cutting-edge vitreo-retinal and cataract technologies into a single, powerful platform. Designed for precision, safety, and efficiency, Turbo Orbit delivers exceptional performance for modern ophthalmic surgeons.
Advanced LED Illumination
The most advanced LED illuminator provides state-of-the-art, ultra-sharp illumination for superior tissue visualization. The system offers bright, white, and homogeneous light with significantly higher brightness compared to conventional halogen sources. Dual independent LED illumination allows seamless single-touch switchover for chandelier illumination, ensuring uninterrupted surgical workflow. The design minimizes glare, reduces heat generation, and provides both focused and wide-angle views for enhanced surgical clarity.
Integrated Infusion Pressure Control
Turbo Orbit features an integrated and highly stable infusion pressure (IP) system for optimal chamber maintenance. Surgeons can instantly switch to high infusion pressure using single-touch foot control with voice assistance, ensuring precise intraoperative control and improved patient safety.
Ultra-Sharp Trocar Entry System
The ultra-sharp valved and non-valved trocar entry system (23G, 25G) ensures smooth, controlled entry with superior wound sealing. The advanced infusion cannula design provides more than 50% higher achievable infusion flow rates compared to non-valved cannulas, enabling better IOP control. A secure closed fluidic system minimizes pressure fluctuations during instrument exchange, while surgeon-removable self-sealing valves enhance flexibility and safety.
High-Speed Bi-Blade Vitrectomy Cutter
The high-speed bi-blade vitrectomy cutter (23G, 25G) features a dual-edge blade design that doubles cutting efficiency. With a faster cut rate and consistent flow, it allows a 100% open duty cycle, enabling surgeons to shave closer to the retina, perform precise dissections, and efficiently remove intraocular tissues with confidence.
Orbital Phaco Handpiece
The high-performance orbital phaco handpiece uses a 6-crystal longitudinal and transverse ultrasonic piezoelectric titanium design. It delivers powerful emulsification for all grades of cataract while maintaining excellent chamber stability and followability. The dual-direction cutting motion significantly reduces endothelial damage, even in hard cataract cases, and supports a complete MICS surgical approach.
Silicone Oil Injection & Extraction
Turbo Orbit offers pneumatic-driven silicone oil injection with adjustable pressure from 1 to 100 PSI and vacuum-controlled extraction adjustable from 5 to 650 mmHg. Separate cannulas for injection and extraction ensure quick, safe, and controlled handling of silicone oils ranging from 1000 to 5000 cSt.
Intelligent Footswitch Control
The advanced multifunctional footswitch features a vibrating mechanism to sense different steps, offering precise tactile feedback. Fully user-programmable angle and side buttons allow surgeons to customize vibration timing and system parameters. Parameters can be adjusted even while the foot pedal is active, ensuring smooth, uninterrupted surgical control.
Designed for Speed, Precision & Ease of Use
With fast startup, intuitive operation, and innovative technology, Turbo Orbit delivers a secure, stable, and efficient surgical environment—making it an ideal choice for advanced vitreoretinal and cataract procedures in a single integrated system.
| Parameters | Description |
|---|---|
| Display | 10.4” Anti-Glare Interactive Soft Touch Clear LCD Display |
| U/S (Ultrasound) – Phragmatome | Lightweight, 6-crystal, longitudinal effective handpiece, frequency 28 kHz |
| Phaco Modes | Continuous, Pulse, Micro Pulse, Burst, MBurst, Occlusion Pulse, Occlusion Micro Pulse |
| U/S Power | 1 – 100% |
| Phaco Handpiece | Lightweight, 6-crystal, longitudinal & transverse (orbital motion) handpiece, frequency 28 kHz |
| Irrigation—Fluid Delivery | Forced infusion (5–120 mmHg) & Gravity-fed, Continuous / Foot-operated |
| IV Pole | Motorized IV pole to increase & decrease IV bottle height |
| Parameters | Description |
|---|---|
| Electrical Specification – Main Power | 110–230 V AC |
| Electrical Specification – Frequency | 50–60 Hz |
| Electrical Specification – Current Rating | 0.6 Amps |
| Electrical Specification – Power Rating | 150 VA (Max) |
| Vitrectomy – Cutter Type | Pneumatic (Guillotine) single cutter, 60–8040 CPM (linear/non-linear), 23G, 25G & 27G compatible |
| Illumination – Type | Two independent LED light sources |
| Illumination – Intensity | 10–100% |
| Parameters | Description |
|---|---|
| User Programmable – Users | 10 independent user program modes |
| Operating Modes | VIT1, VIT2, VIT3, SOI/SOE, FRAG, PHACO1, PHACO2, PHACO3, I/A1, I/A2, CAPVAC, DIA |
| Voice Assistance | Voice assistance for all modes & functions |
| Footswitch | User-programmable multifunctional foot pedal for angle & side buttons with reflux mechanism; multiple steps sensed via vibrating mechanism |
| Video Overlay | Video overlay enabled in all modes |
| Fluid–Air Exchange – Pressure Source | Air pressure: 5–100 mmHg |
| Silicone Oil Control – Injection Mode | Pressure: 1–100 PSI |
| Silicone Oil Control – Extraction Mode | Vacuum: 5–650 mmHg |
| Diathermy – Type | Compatible with both endo- & exodiathermy |
| Diathermy – Power | Bipolar, 560 kHz frequency, 1–7 W (Max) |
| Diathermy – Control | 5–100% (Linear / Non-Linear) |
| Trolley-Type | Mobile trolley with motorized & manual IV pole |
| Trolley – Dimensions | 20 cm (H) × 45 cm (B) × 46 cm (L) |
| Trolley – Weight | 28 kg (Console & accessories) |
| Aspiration Modes – Type | Venturi, pressurized gas or compressor-fed |
| Aspiration Modes – Vacuum Level | 5–650 mmHg (Linear / Non-Linear) |
