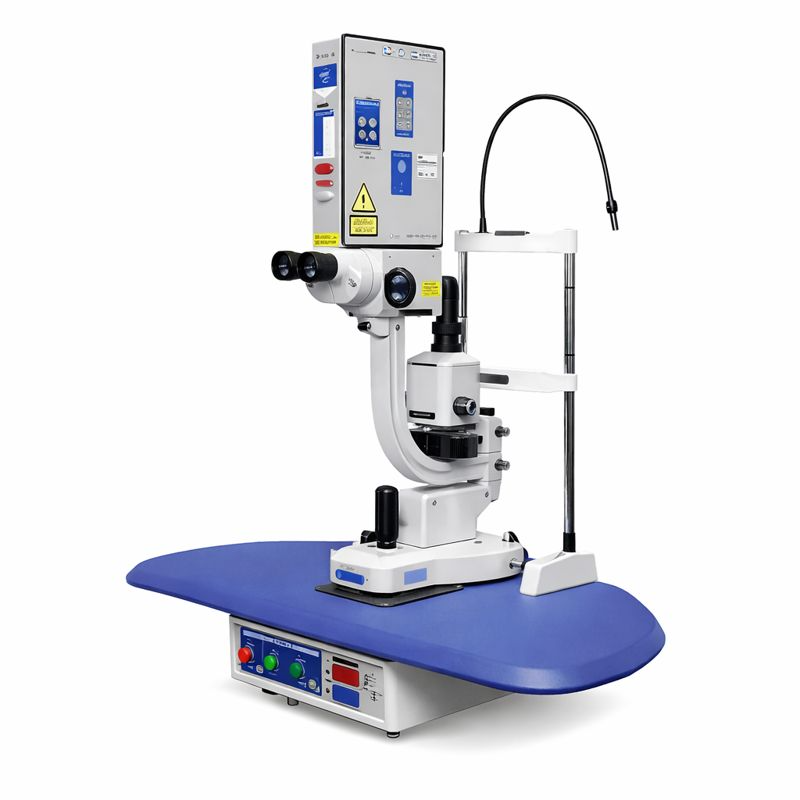

The YAG & SLT Combo Laser – Model 507 is a versatile dual-function ophthalmic laser system combining Nd:YAG laser and Selective Laser Trabeculoplasty (SLT) in a single platform.
It is designed to support a wide range of anterior segment laser procedures, making it ideal for eye hospitals, ophthalmic clinics, and glaucoma centers.
By integrating both YAG and SLT capabilities, Model 507 offers clinical flexibility, space efficiency, and cost savings, eliminating the need for two separate laser systems.
Key Features
-
Dual Laser System: Nd:YAG + SLT in one unit
-
High-precision optics for accurate laser delivery
-
Adjustable energy settings for safe and controlled treatment
-
User-friendly interface for efficient clinical workflow
-
Compact and ergonomic design suitable for busy practices
-
Reliable performance with consistent clinical outcomes
TECHNICAL SPECIFICATIONS
YAG & SLT COMBO LASER – MODEL 507
General Specifications
| Parameter | Specification |
|---|---|
| Model | 507 |
| Laser Type | Nd:YAG + SLT Combo |
| Application | Cataract & Glaucoma Laser Procedures |
| System Type | Dual-function Ophthalmic Laser |
| Operation Mode | Fully Computer-Controlled |
| Mounting | Slit Lamp–Based System |
Nd:YAG Laser Specifications
| Parameter | Specification |
|---|---|
| Laser Medium | Nd:YAG |
| Wavelength | 1064 nm |
| Pulse Mode | Single Pulse |
| Energy Range | 0.1 – 10.0 mJ (adjustable) |
| Pulse Duration | ~4 ns |
| Spot Size | ≤ 8 µm |
| Offset Range | Adjustable (posterior/anterior) |
| Aiming Beam | Red Diode Laser |
| Aiming Beam Wavelength | 635 nm |
| Applications | Posterior Capsulotomy, Iridotomy, Membranectomy |
SLT Laser Specifications
| Parameter | Specification |
|---|---|
| Laser Medium | Frequency-Doubled Nd:YAG |
| Wavelength | 532 nm |
| Pulse Duration | ~3 ns |
| Energy Range | 0.2 – 2.0 mJ (adjustable) |
| Spot Size | ~400 µm |
| Repetition Rate | Single Shot |
| Treatment Mode | Selective Laser Trabeculoplasty |
| Applications | Open-Angle Glaucoma Treatment |
Optical & Slit Lamp Specifications
| Parameter | Specification |
|---|---|
| Slit Lamp Type | Integrated |
| Microscope Magnification | Multi-step (selectable) |
| Illumination | Halogen / LED (model dependent) |
| Chin Rest | Adjustable |
| Forehead Rest | Adjustable |
| Patient Alignment | Fine XYZ adjustment |
Control & User Interface
| Feature | Specification |
|---|---|
| Control Panel | Touch Screen / Digital Control |
| Energy Adjustment | Fine incremental control |
| Safety Interlock | Built-in |
| Foot Switch | Supported |
| User Profiles | Supported |
Safety & Compliance
| Parameter | Specification |
|---|---|
| Safety Standards | Medical Laser Safety Compliance |
| Emergency Stop | Available |
| Key Switch | Included |
| Protective Filters | Integrated |
Power Specifications
| Parameter | Specification |
|---|---|
| Power Supply | AC 100–240 V |
| Frequency | 50 / 60 Hz |
| Power Consumption | Low |
Standard Accessories
| Accessory | Included |
|---|---|
| Slit Lamp Table | ✔ |
| Laser Safety Goggles | ✔ |
| Foot Pedal | ✔ |
| Dust Cover | ✔ |
| User Manual | ✔ |
Optional Accessories
| Accessory | Availability |
|---|---|
| Contact Lenses (Laser) | Optional |
| UPS | Optional |
| External Printer | Optional |
Clinical Applications
Nd:YAG Laser
-
Posterior capsulotomy
-
Peripheral iridotomy
-
Membranectomy
SLT Laser
-
Treatment of open-angle glaucoma
-
Reduction of intraocular pressure (IOP)
-
Repeatable, non-thermal glaucoma therapy
Ideal For
-
Eye hospitals & ophthalmic clinics
-
Glaucoma specialty centers
-
Cataract surgery centers
-
Teaching hospitals & training institutes
Why Choose YAG & SLT Combo Model 507?
-
Two laser technologies in one integrated platform
-
Space-saving and cost-effective solution
-
Enhances treatment capability for cataract & glaucoma care
-
Suitable for global export and long-term clinical use
