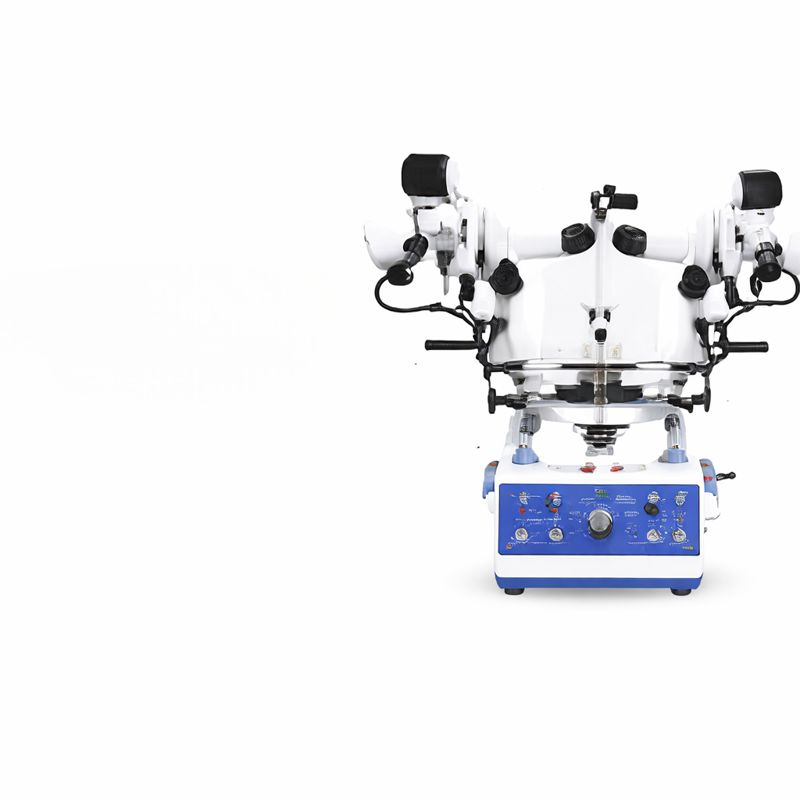

APPA SYNOPTOPHORE – MODEL ASP 902

APPASAMY ASSOCIATES | Empowering Vision®

Fast Delivery | Latest Price on Request

Powered by Ernest Pharmaceutical Group

(All brands under Ernest Pharmaceutical Pvt. Ltd.)

@ERNESTVISION | ERNEST PHARMACEUTICAL PVT. LTD.

Product Overview

The APPA Synoptophore Model ASP 902 is an advanced diagnostic and therapeutic ophthalmic instrument designed for accurate squint (strabismus) evaluation and binocular vision management. Widely used in eye hospitals, orthoptic clinics, and vision therapy centers, this system enables precise measurement of deviation angles and effective binocular vision training.

Equipped with auto-flashing illumination, after-image testing, and Haidinger brush functionality, the ASP 902 ensures reliable clinical performance and long-term durability.

Key Features

Diagnostic and therapeutic solution for squint / strabismus
Accurate measurement of binocular vision angle of deviation
Auto-flashing slide illumination
After-image testing capability
Integrated Haidinger brush function
Smooth motorized control with ergonomic design

Slides Details

Yellow Slides
Used for macula, fovea, lazy eye (amblyopia), hidden squint, and headache evaluation.

Green Slides
Used to assess depth perception and 3D image effect.

Black Slides
Used for fusion testing and fusion range assessment; also suitable for H.B. motor tests.

Red Slides
Used for simultaneous perception (SMP), measuring squint degree, angle of deviation, and PD value.

Technical Specifications

Optional Tubes Movement

Horizontal: Adduction +50°, −40°
Vertical: Hyperphoria 30°, Hypophoria 30°
Torsional: Encyclophoria 20°, Excyclophoria 20°

Auto Flashing

Simultaneous or alternate rapid auto-flashing of slide illumination with variable modes.

Haidinger Brush

12 V illumination lamp with easy motor speed control in both directions.

Slide Illumination

Rheostat-controlled 6 V halogen lamp for each side
High-intensity 12 V illumination for after-image testing

Chinrest Height

60 – 130 mm (from eyepiece tube)

Pupil Adjusting Distance

45 – 75 mm

Electrical Specifications

Target Illumination Lamp: 6.2 V, 0.3 A
After-Image Lamp: 12 V, 2 A
Transformer: PRI-AC 0–230 V, 50 Hz | SEC-0–12 V, 14 V, 3 A
Main Supply: ~110–230 V, 50–60 Hz
Power Consumption: 25 W

Physical Parameters

Dimensions: 390 mm (H) × 530 mm (W) × 310 mm (B)
Weight: 17 kg

Standard Accessories

Slide Box (1)
Dust Cover (1)
Blue Filter (1)
6 V Bulb (1)
12 V Bulb (1)
2 A Fuse (1)

Optional Accessories

Motorized Table
