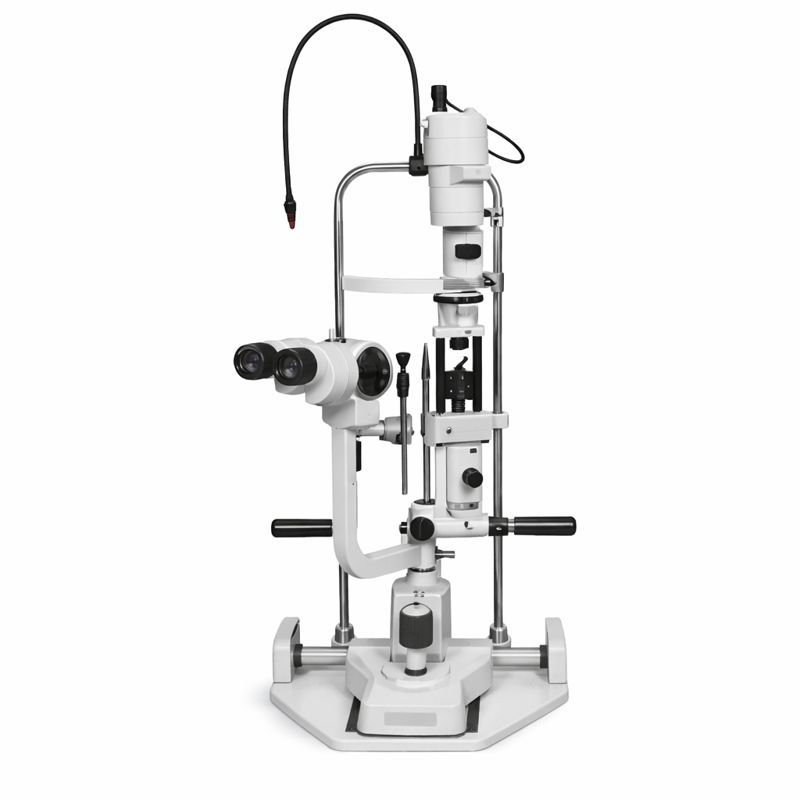

SLIT LAMP – AIA-11 SERIES
| Model | Magnification Type | Illumination |
|---|---|---|
| AIA-11 2S / 2SL | 2-step magnification | Halogen/LED |
| AIA-11 3S / 3SL | 3-step magnification | Halogen/LED |
| AIA-11 5S / 5SL | 5-step magnification | Halogen/LED |
| AIA-11 ZOOM / ZOOM-L | Continuous zoom magnification | Halogen/LED |
Common Features of AIA-11 Series
High-quality binocular stereoscopic optics
Sharp slit illumination with adjustable width, height & angle
Smooth joystick control for precise movement and focusing
Comfortable chin rest and forehead support
Stable base for vibration-free operation
Compact design suitable for clinics with limited space
Clinical Applications
Anterior segment examination
Cornea, iris, lens, and anterior chamber evaluation
Contact lens assessment
Routine ophthalmic diagnostics
Ideal For
Ophthalmology clinics & hospitals
Optometry practices
Vision screening centers
Medical colleges & training institutes
1. Common Optical Specifications
| Parameter | Specification |
|---|---|
| Microscope Type | Binocular stereoscopic microscope |
| Eyepiece | 10× (optional 12.5×) |
| Interpupillary Distance | Adjustable |
| Slit Width | 0 – 14 mm (continuous) |
| Slit Height | 1 – 14 mm (continuous) |
| Slit Angle | 0° – 180° |
| Filters | Heat absorbing, Blue, Green (Red-free) |
| Fixation Target | Inbuilt |
| Observation Angle | Convergent binocular |
2. Physical Parameters
| Parameter | Specification |
|---|---|
| Instrument Dimensions | Approx. 680 × 480 × 520 mm |
| Table Dimensions | Approx. 900 × 600 mm |
| Net Weight | Approx. 40–50 kg |
| Gross Weight | Approx. 60–70 kg |
| Finish Color | Medical White/Gray |
| Construction | Rigid metal body with smooth mechanical movement |
3. Electrical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | AC 110–240 V, 50/60 Hz |
| Illumination Type | Halogen/LED (L models) |
| Halogen Lamp | 12 V / 30 W |
| LED Source | High-intensity white LED |
| Power Consumption | ≤ 60 W |
| Safety | Electrical safety compliant |
4. Standard Accessories (Supplied with Unit)
| Accessory | Included |
|---|---|
| Chin Rest Assembly | ✔ |
| Forehead Rest | ✔ |
| Binocular Microscope Head | ✔ |
| Illumination Unit | ✔ |
| Fixation Target | ✔ |
| Dust Cover | ✔ |
| Power Cable | ✔ |
| User Manual | ✔ |
| Fuse Set | ✔ |
5. Optional Accessories
| Accessory | Description |
|---|---|
| Applanation Tonometer | Goldmann type |
| Digital Camera System | CCD/CMOS imaging |
| Teaching Attachment | Dual observer system |
| Yellow Filter | For fluorescein use |
| Motorized Table | Height adjustable |
| Additional Eyepieces | 12.5× |
| USB / HDMI Camera | Image & video capture |
| Breath Shield | Acrylic protection |
Applicable Models
✔ AIA-11 2S / 2SL
✔ AIA-11 3S / 3SL
✔ AIA-11 5S / 5SL
✔ AIA-11 ZOOM / ZOOM-L
