Advanced Ophthalmic Photocoagulation Laser System
The Amogh Smart Single Spot Green Laser (532 nm) is a high-precision ophthalmic therapeutic laser system designed for retinal and anterior segment photocoagulation procedures. Built on solid-state, diode-pumped laser technology, it delivers stable output, excellent beam quality, and long operational life, making it suitable for high-volume eye hospitals, specialty clinics, and teaching institutions.
Developed by Appasamy Associates, the Amogh Smart reflects decades of experience in ophthalmic engineering, focusing on clinical reliability, user safety, and ergonomic workflow.
🌿 532 nm Green Laser – Clinical Advantage
The 532 nm green wavelength is considered the gold standard for retinal photocoagulation because it is:
Highly absorbed by melanin and hemoglobin
Minimally absorbed by xanthophyll pigment
Effective at lower power levels, reducing collateral tissue damage
This makes Amogh Smart ideal for precise, controlled retinal burns with predictable therapeutic outcomes.
⚙️ Laser Technology & Design
Laser Type: Diode-pumped, frequency-doubled, solid-state green laser
Emission Mode: True continuous wave (CW) with pulsed operation
Optical Stability: Maintains consistent output across long procedures
Long Laser Life: Designed for extended clinical use with low maintenance

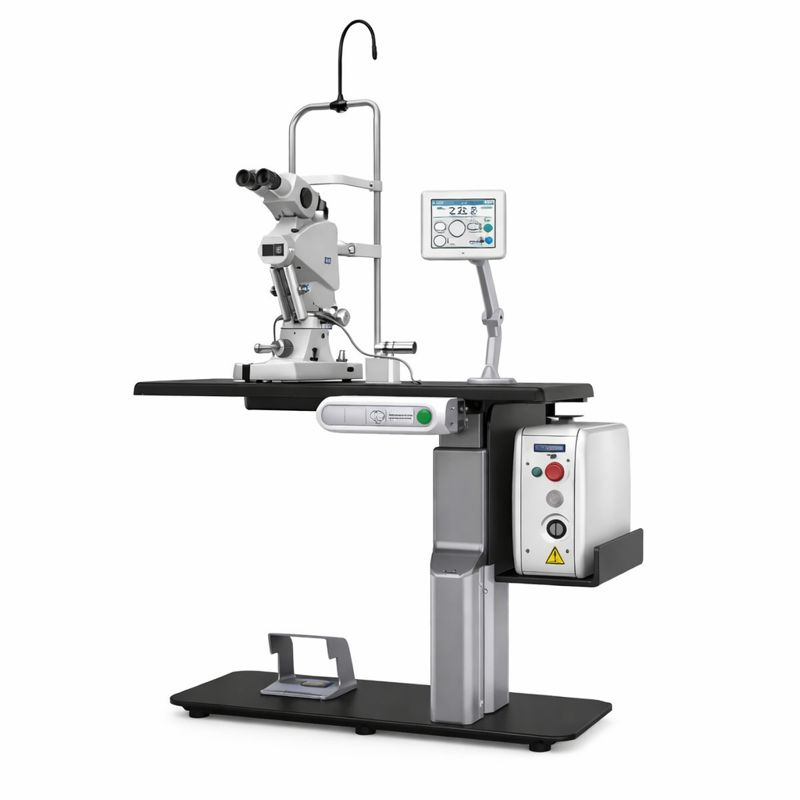

The compact console design allows easy installation on slit lamps and seamless integration into existing ophthalmic setups.
🖥️ User Interface & Controls
Color LCD Touch Screen Interface
Intuitive parameter setting for:
Power
Pulse duration
Pulse interval
Treatment mode
Electronic joystick micromanipulator for precise spot positioning
Foot switch control for hands-free laser activation
This user-friendly design minimizes learning curves and enhances procedural confidence.
🔬 Operating Modes
The Amogh Smart supports multiple clinically relevant modes:
Single Pulse Mode – Controlled individual laser shots
Repeat Pulse Mode – Consistent burn spacing
Continuous Mode – For specific therapeutic requirements
These modes provide flexibility across a wide range of retinal pathologies.
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Wavelength | 532 nm (Green) |
| Laser Output Power | Up to 3 W |
| Power Adjustment Range | 10 mW – 1500 mW |
| Pulse Duration | 10 ms – 10 seconds |
| Pulse Interval | 10 ms – 10 seconds |
| Aiming Beam | 635 nm red diode (0–1 mW, variable) |
| Laser Class | Class IV |
| Display | Color LCD Touch Screen |
| Cooling System | Integrated forced air cooling |
| Power Supply | AC 110–240 V, 50/60 Hz |
| Power Consumption | Approx. 100 W |
| Dimensions (W×D×H) | Approx. 290 × 175 × 365 mm |
| Weight | Approx. 8 kg |
🏥 Clinical Applications
The Amogh Smart 532 nm Green Laser is widely used for:
Posterior Segment Treatments
Diabetic Retinopathy (PRP & focal)
Retinal tears and lattice degeneration
Branch & Central Retinal Vein Occlusion
Central Serous Chorioretinopathy
Macular edema (grid/focal)
Anterior Segment Applications
Peripheral Iridotomy (with appropriate delivery optics)
Selected glaucoma laser procedures (with accessories)
🛡️ Safety & Compliance
Built-in laser safety interlocks
Emergency laser cut-off
True-color safety filters for clear visualization
Designed to comply with international laser safety standards
Operator and patient safety are central to the Amogh Smart’s design philosophy.
🌍 Why Choose Amogh Smart?
✔ Proven 532 nm green laser technology
✔ Reliable solid-state design with long service life
✔ Compact, slit-lamp-friendly form factor
✔ Intuitive touch-screen operation
✔ Suitable for hospitals, clinics & outreach programs
✔ Trusted brand with global installations
🧩 Ideal For
Eye hospitals & medical colleges
Retina specialists & ophthalmic surgeons
Government & NGO eye care programs
Mobile & satellite ophthalmology units
