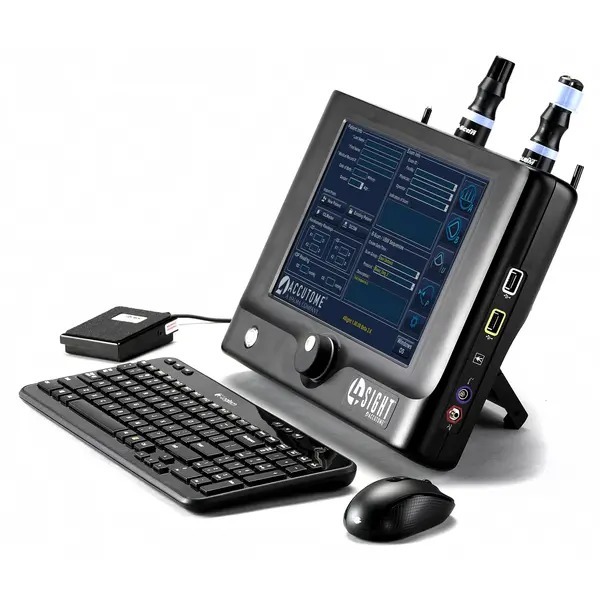

Accutome 4Sight – Ophthalmic Ultrasound Diagnostics
Supplier / Exporter: @ErnestVision | Ernest Pharmaceutical Pvt. Ltd.
The Accutome 4Sight Ophthalmic Ultrasound Diagnostics System is a state-of-the-art imaging platform designed to deliver precise, high-resolution visualization of ocular structures. Engineered for eye hospitals, retina centres, and advanced ophthalmic diagnostic facilities, the 4Sight system combines multiple ultrasound modalities into one powerful and compact device—ensuring unmatched diagnostic accuracy and clinical efficiency.
@ERNESTVISION | ERNEST PHARMACEUTICAL PVT LTD
For global exports, OEM branding & distributor partnerships:
📧 Email: exports@ernestpharmaceuticals.com 🌐 https://ernestpharmaceuticals.com/ | https://www.ernestvision.com/ | https://www.ernestimpex.com/
Sachin Kashiwar: WhatsApp link https://wa.me/919359902383 📲 WhatsApp: +91 9359902383
High Value Workstation:
Single solution for all ophthalmic ultrasound imaging at an affordable price
High quality with industry-leading warranty and service programs
Live help and dependable support for the life of the product
Accuracy:
Proprietary signal processing
Industry leading clinical accuracy
Unsurpassed image quality
Efficiency:
Single point-of-use technology for all ophthalmic diagnostic imaging needs in an ergonomic portable package
Intuitive user interface for a rapid and smooth learning curve
Easy data transfer between modalities and higher patient throughput
DICOM℠ Worklist compatible
Specifications:
4Sight Unit
Weight: 5 lbs.
Dimensions: 15”W x 2”D x 11”H
Touch screen
Integrated DICOM worklist modality
External connections HDMI and ethernet
5 USB ports
A-Scan probe connection
Pachymeter probe connection
A-Scan Module
Weight: 0.08 oz.
Dimensions: 1.75”L x 0.2”W
Electronic Resolution: 0.016 mm
Clinical Accuracy: 0.1 mm
Frequency: 10MHz
Immersion or contact measurement mode
Default eye types Phakic, Dense Cataract, Silicone Filled, Pseudo Acrylic/PMMA/Silicone, Aphakic
Custom eye types possible
Measurements ACD, lens thickness, VCD, axial length
Capture modes auto or manual
Data points per waveform 4096
IOL Formulas Hoffer Q, Holladay I, SRK II, SRK/T, Binkhorst II, Haigis, Clinical History, Contact Lens, Shammas Clinical, Entered
Report/Image export PDF, JPEG, PNG, GIF, TIFF, BITMAP
B-Scan Module
Weight: 6 oz.
Dimensions 7”L x 1.25”W
Axial Resolution: 0.015 mm (electronic)
Lateral Resolution: 0.085 mm (electronic)
Frequency: 12 MHz or 15 MHz
Sampling Rate: 2048
Scan Angle: 60°
Gamma Linear, S-Curve, Log, Color
Time gain control
Report/Image export PDF, JPEG, PNG, GIF, TIFF, BITMAP
256 scans per frame
12 measuring calipers (6 lines, 2 areas, 2 angles, 2 arrows)
UBM Module
Weight: 6 oz.
Dimensions 7”L x 1.25”W
Axial Resolution: 0.015 mm (electronic)
Lateral Resolution: 0.05 mm (electronic)
Frequency: 48 MHz
Sampling Rate: 2048
Scan Angle: 30°
Gamma Linear, S-Curve, Log, Color
Time gain control
2x optical zoom
Report/Image export PDF, JPEG, PNG, GIF, TIFF, BITMAP
256 scans per frame
12 measuring calipers (6 lines, 2 areas, 2 angles, 2 arrows)
USB cable with power isolator
Pachymeter Module
Weight: 0.67 oz.
Dimensions: 1.75”L x 0.2”W
Accuracy: ±5μ
Sample Rate: 65 MHz
Measurement Range: 300-999 μ
Automated IOP adjustment
🚚 Export & Logistics
We ensure international-standard packaging & safe device handling:
📦 Multi-layer packing for optical components
💠 Scratch-resistant protective cases for ophthalmic instruments
❄ Temperature-controlled packing for sensitive consumables
✈ Fast dispatch within 24–72 hours for most orders
Included Accessories
Wireless mouse
Wireless keyboard
Probe holders (on the back of the unit)
Power supply
A-Scan immersion shell
Manual
Quick reference guide
Test blocks (A-Scan and Pachymeter)
Optional Accessories
Original B-Scan table top probe holder
Original UBM table top probe holder
