Description
TxCell™ Scanning Laser
Delivery System
Versatile Platform for Advanced Retinal Therapy
The TxCell Scanning Slit Lamp Adapter adds the use of multi-spot pattern scanning when coupled to
the IQ 532TM or IQ 577TM laser. In one platform, growing practices can offer:
° Multi-spot pattern scanning for efficient pan retinal photocoagulation
° Standard photocoagulation with optimized wavelengths: IQ 532 and true-yellow IQ 577
° Confluent laser patterns for tissue-sparing MicroPulseTM protocols
Workflow Efficiency
° Predictability in laser spot placement for both standard
photocoagulation and MicroPulse protocols
° High speed pulse durations for efficient laser delivery
° Modular design for intra-office portability
IQ 532TM and IQ 577TM Laser Systems
The Advantages of Innovation
° High power for greater range of therapy alternatives
° High speed pulse durations for faster procedural time
° DualSenseTM provides quick and simple selection of
multiple delivery devices for RFID and SMA
Intelligent and Intuitive Design
° Dual port for efficient setup of alternate delivery devices
° Intuitive graphic touch screen interface for ease of use
° Programmable memory presets for multiple users
TxCell™ Scanning Laser
Delivery System
Specifications are subject to change without notice. IRIDEX and the IRIDEX logo are registered trademarks and IQ 532, IQ 577, DualSense,
CW-Pulse, MicroPulse and Fovea-Friendly are trademarks of IRIDEX Corporation. All other trademarks are the property of their respective owners.
Products are covered by one or more of the following U.S. patents: 5,372,595; 5,511,085; 5,521,932; 5,663,979; 5,982,789;
5,979,554; 6,141,143; 6,144,484; 6,222,869; 6,327,291; 6,377,599; 6,540,391; 6,733,490; 6,800,076; 7,537,593; 7,766,904;
7,771,417; and 7,909,816. LASER RADIATION
AVOID EYE OR SKIN EXPOSURE TO
DIRECT OR SCATTERED RADIATION
CLASS 4 LASER PRODUCT (IEC 60825-1:2007)
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
λ = 532 nm PO = 5 W
λ = 577 nm PO = 5 W
λ = 635 nm PO = 2 mW
EC REP
Specifications
Laser: IQ 532™/IQ 577™
Wavelength: 577 nm or 532 nm
Laser Energy Source: Frequency doubled solid-state and direct diode
Maximum Power: 2 W
Exposure Duration: CW-Pulse™: 10–3000 ms
Exposure Interval: CW-Pulse: 10–3000 ms
MicroPulse™ Duration: MicroPulse: 0.05–1.00 ms
MicroPulse Interval: MicroPulse: 1.00–10.00 ms
Aiming Beam: Diode laser, 635 nm nominal
Patterns: Grid (2x2 - 7x7), Circle, Triple Arc
User Interface: Touchscreen & knobs
Slit Lamp: CSO SL 980, Zeiss 30SL, Zeiss SL 130,
and equivalents
Spot Sizes: Single spot: 50µm, 100µm, 200µm, 300µm, 500µm
Multi-spot: 100µm, 200µm, 300µm, 500µm
Electrical: 100 – 240 VAC, 50/60 Hz

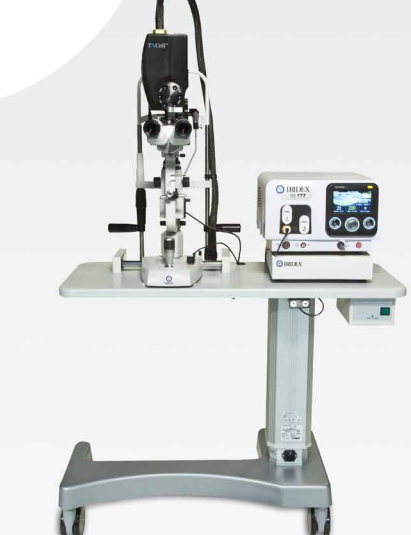

The TxCell Scanning Laser Delivery System components:
° TxCell Scanning Slit Lamp Adapter (SSLA)
° TxCell Control Box
° IQ 532 or IQ 577 laser
