Description

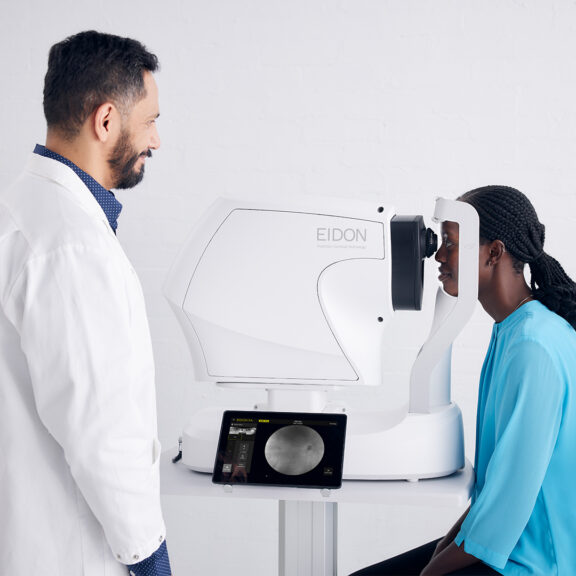

iCare EIDON β the first TrueColor Confocal imaging device for ultra-high resolution widefield imaging
iCare EIDON Family combines a confocal optical engine with a white light LED source β which includes the entire visible spectrum of light β to illuminate the retina and to capture TrueColor fundus images characterized by colors close to reality. Itβs the perfect retinal imaging system that provides TrueColor and widefield views in multiple imaging modalities. iCare EIDON provides unsurpassed image quality and a unique, live, confocal view of the retina in a dilation-free operation.
Key features
Multiple imaging modalities including TrueColor, blue, red and Red-Free and infrared confocal images
Widefield, ultra-high-resolution imaging
Capability to image through cataract and media opacities
Dilation-free operation (minimum pupil 2.5 mm)
Flexibility of fully automated and fully manual mode
All-in-one compact design, no additional PC required
Fundus Imaging System Features
Non-mydriatic
minimum pupil size 2.5 mm
Field of view (measured from the center of the eye)
Individual image
90Β°
Mosaic (up to nine images)
up to 160Β°
Sensor resolution
14 Mpixel (4608 x 3288)
Light sources
White LED
440 - 650 nm
Infrared LED
825 - 870 nm
Imaging modalities
TrueColor
Infrared
RGB channels separation*
Other features
Working distance
28 mm
Offering the best of confocal technology, iCare EIDON guarantees increased image sharpness, better optical resolution, higher details and greater contrast that takes retinal diagnostics to the next level. This combined with its easy-to-use interface and patient-friendly features make the iCare EIDON a valuable and efficient tool in any clinical setting.
βEIDON TrueColor Widefield Confocal Scanner gives great retinal images, far superior to a standard retinal camera: you are able to see certain condition in much better visualization, such as Diabetic Retinopathy.β β Steven G Ferrucci, OD, FAAO, US
Ultra-Widefield details in high definition
iCare EIDONβs widefield optics from 90Β° to 160Β° field of view allows imaging of the central retina as well as the periphery. iCare EIDON TrueColor confocal technology applied to widefield imaging is particularly crucial as it helps to improve the detection, analysis and monitoring of pathologies that could arise in the periphery of the retina. iCare EIDONβs widefield features help to preserve the sharpness and details even in the periphery, facilitating improved and early diagnosis.
Increased field of view up to 200Λ
Thanks to the EIDON Ultra-Widefield Module it is possible to increase the field of view up to 200Λ, which helps to detect signs of pathologies that start to appear in the periphery. The Ultra-Widefield module enables a view of the retina from 120Β° with a single shot, and up to 200Β° with the Mosaic functionality.
TrueColor retinal images for unsurpassed quality
iCare EIDON uses white light LED to provide TrueColor imaging with no distortion and superior color fidelity. Using white light led, the retina appears as it looks when directly observed, as the entire visible spectrum is present in the captured image.
iCare EIDON TrueColor can facilitate the diagnosis and monitoring of retinal diseases and improve retinal diagnostics capabilities. According to findings by a clinical study iCare EIDON provides more balanced color images with a wider richness of color content compared to a conventional flash fundus camera. The overall higher chromaticity of iCare EIDON may provide benefits in terms of discriminative power and diagnostic accuracy.
Multiple imaging modalities for a complete picture
iCare EIDON offers crisp and sharp widefield images representing the actual appearance of the retina in multiple imaging modalities. White LED illumination provides high-quality TrueColor images, Red-free filtering enhances visualization of retina vasculature, blue images provide improved view of the Retinal Nerve Fiber Layer (RNFL) and the red channel allows light to penetrate into the deep layers of the retina. Infrared light provides detailed information corresponding to the choroid.
Fully automated, comfortable, and easy-to-use experience
iCare EIDON provides the flexibility of going from fully automatic to fully manual operations β offering features like auto-alignment, auto-focus, auto-exposure, auto-capture and auto-mosaic. iCare EIDON is easy to use and requires minimal staff training, which can speed up examination time and in turn improve patient workflow. With its ergonomic, motorized chin rest, soft flash and no need for dilation, iCare EIDON promises enhanced comfort to patients.
Connectivity, anytime and anywhere
iCare EIDON multi-touch tablet makes magnification and review easy. Additionally, the remote viewer feature makes also remote data review effortless, allowing any computer or laptop on the same local area network (LAN) to review iCare EIDON images remotely, enabling data access and detailed analysis on multiple review stations.
