Description
DEEP REALITY VIEWER
Specifically designed for inspection and manufacturing applications, DRV-Z1 is a digital stereo 3D viewer with zoom that brings together the benefits of optical stereo microscopy and digital technology into a single unique system.
Real-time collaboration, capture and share in 3D
Digital stereo 3D with vivid depth perception viewed without glasses
Greater fields of view and extended working distances
The future of optical inspection is here
The incredible DRV-Z1 (Deep Reality Viewer) is the world’s first and only digital stereo inspection system which creates full 3D HD images that appears to float in front of your eyes. You don’t need any special glasses or goggles and there are no unpleasant side effects. You just sit back and view high definition 3D images, with outstanding depth perception, as easily as real life.
It is a remarkable invention which is already revolutionizing the way organizations view, capture and share 3D images of the samples they are studying.
A powerful combination
Ideal for inspection and manufacturing applications, the award-winning DRV-Z1 combines the capabilities of an optical stereo microscope with digital measuring technology, in a single unique system. Magnifications between 6.1x – 93x (additional 2x digital) with zoom capabilities are possible, and accurate on-screen measuring can be achieved with our powerful software, such as ViPlus and DimensionOne.
Real time collaboration on a global scale
3D HD images can be shared across networks to other DRV systems in real time, for simultaneous remote viewing. Now your colleagues can view anything from sensitive subjects in strictly controlled environments though to newly made prototypes created thousands of miles away, without ever leaving the office. It is easy to recall previously saved 3D images.
Outstanding ease of use
DRV-Z1’s glasses-free 3D experience with true depth perception, extra wide field of view, high definition resolution and excellent subject clarity, make it a great choice for inspection applications which would otherwise be problematic using conventional technology.
Supreme comfort
The ergonomic design improves comfort, efficiency and productivity by enabling good posture, reducing fatigue. Operators enjoy freedom of head movement, a natural view of the subject and easy hand-eye coordination critical for precision inspection tasks such as re-work, repair and dissection. There are also no limitations for wearers of prescription or safety glasses.
Exceptional ease of use
DRV-Z1 requires minimal setup and is remarkably easy to use, with familiar controls designed specifically for efficiency and convenience. Very little training is required to enjoy the full user and productivity benefits. 2D or 3D can be captured to a USB drive, and the DRV-Z1 can also be connected to a PC for local sharing, or for access to dimensioning software such as ViPlus or DimensionOne.
Versatile
A long working distance and wide zoom range suit a broad range of industrial and life science applications which require precise hand-eye co-ordination, including those typified by Aerospace, Automotive, Electronics, Materials Analysis, Medical, Precision Engineering, Prototyping, and more.
Convenient
Why travel when you can see the same thing, in full 3D HD, in real time, from the comfort of your own workplace? It saves you time, it saves you money and it’s better for the planet.
DRV-Z1 short base
The short-base configuration with illumination from above is suitable for positioning over the working area.

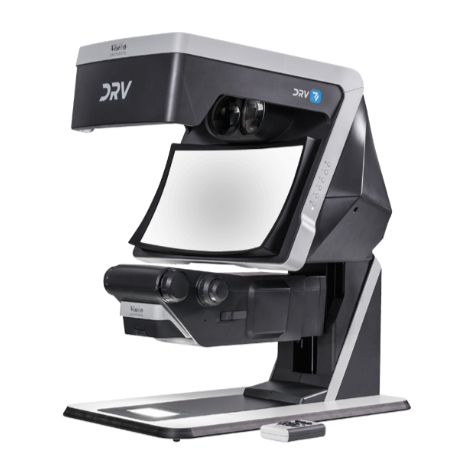

DRV-Z1 long base with sub-stage light
The long base version provides illumination from above and below for opaque, translucent and perforated samples. The low profile base improves working comfort and convenience.
Objective Lenses Zoom Ratio: 10:1
Lens options Magnification range (optical) Working Distance (mm) Max Field of View (mm)
0.33x 6.1x – 61x 7.17″ (182mm) 65 x 37
0.4x 7.4x – 74x 5.43″ (138mm) 54 x 30
0.5x 9.3x – 93x 3.66″ (93mm) 43 x 24
Camera
Resolution Full stereo HD. 2x Full HD channels
Image Size on concave mirror 15.75″ x 8.86″ (400mm x 225mm) in 16:9 aspect ratio
Outputs and Connectivity
USB2 For image capture to USB drive
HDMI ports For connection to an external monitor, a second DRV-Z1 or to other devices for remote viewing.
tand and Base options
Counterbalanced stand with 5.90″ (150mm) vertical travel.
Short Base Subjects are placed directly on the workbench for maximum clear working area
Long Base With reversible subject plate for a black or a white background
Long Base with
sub-stage. Transmitted (substage) illumination permits viewing in a wider range of applications in electronics, life sciences, films and plastics.
Software Options
(for on-screen measurement via a connected PC)
DimensionOne Image capture, annotation, on-screen measurement.
DimensionTwo Image capture, annotation, on-screen measurement, camera control.
