ophthalmic devices

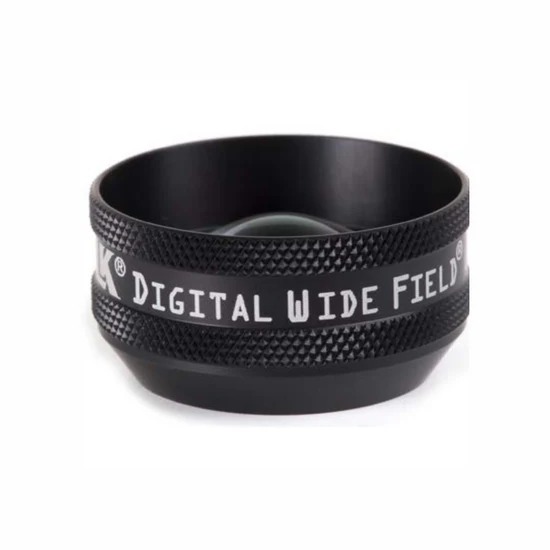

Ideal for High Resolution Small Pupil Pan Retinal Examination The newest generation of our Classic 90D Lens, the Digital Wide Field® Lens, gives the widest field of view in the slit lamp lens range. You'll get crystal clear imaging from the central to the peripheral retina, including ora serrata, even without dilation. Our 3rd generation 90D lens offers 40% more field of view than the classic 90D, while maintaining a comparable magnification. With superior optical coating and high index glass you’ll get bright imaging with no distortion. 103° / 124° field of view 0.72x image magnification 1.39x laser spot magnification 4-5 mm working distance Enhanced double aspheric design paired with high index glass provides highest resolution stereo image, even through small pupils Shorter working distance gives appreciation of the full wide field of view capability of this lens Available in black, blue, gold, green, purple, red, silver Part Number: VDGTLWF

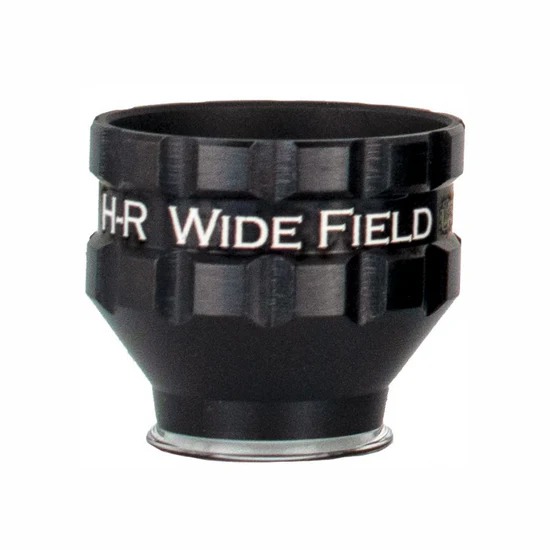

Ideal for Pan Retinal Examination and Laser Treatments Introducing the HR Wide Field PRP Laser Lens, an integral part of our revolutionary HR series of PRP laser lenses. Experience the widest field of view available, spanning from the posterior pole to the ora serrata, allowing for comprehensive diagnosis and treatment of peripheral and far peripheral retinal defects. With its nimble, small body featuring a 24.8 mm lens ring and 21.7 mm lens height, the HR Wide Field provides ample space between the patient's eye and the laser, enabling precise focusing and manipulation. Despite its compact size, the lens offers optimal stability on the cornea and ensures patient comfort. Benefit from the HR series' advanced optical design, delivering bright, distortion-free, high-resolution views even at the periphery. Technical Specifications 160° / 165° field of view 0.50x image magnification 2.0x laser spot magnification Made with higher grade eliminates chromatic aberrations resulting in bright, high-resolution imaging A small prp lens body allows easier manipulation Perfect for diagnosis and treatment of mid-far peripheral retinal defects Part Number: VHRWF

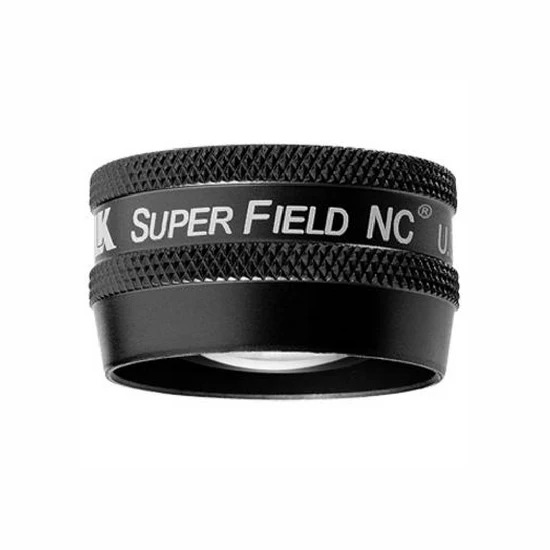

Ideal for Wide Field Pan Retinal Examination The Super Field® Lens is the next generation of our Classic Series 90D Lens. Also called the “Super 90D,” this lens provides wide field imaging to the mid periphery and dynamic viewing to the periphery for a fast, comprehensive image of the retina. With its increased field of view and 30 mm lens ring for comfortable grip and easy manipulation, this lens is the go-to choice for general examination. 95° / 116° field of view 0.76x image magnification 1.32x laser spot magnification 7 mm working distance Perfect combination of wide field of view and comfortable working distance and magnification Can be used on small pupils and patients who don’t accommodate dilation Available in black, blue, gold, green, purple, red, silver Part Number: VSFNC

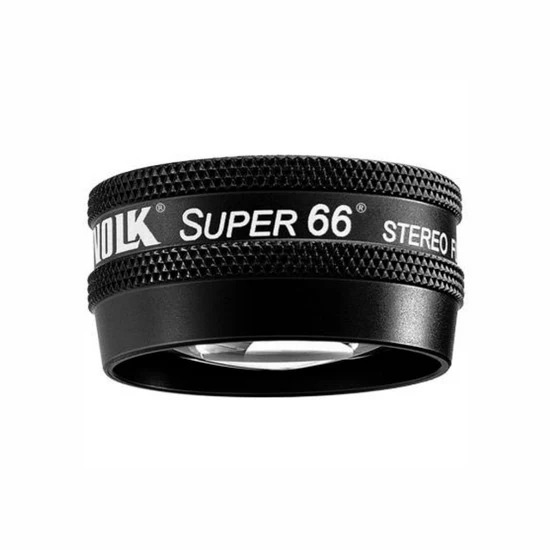

Ideal for High Magnification Viewing of the Central Retina The Super 66® Lens boosts your stereo view of the central retina so you can detect subtle details and changes at the macula and optic disk. Its 1.0x magnification eliminates the conversion factor, so you can quickly and accurately assess cup-to-disc ratios, examine and assess the nerve head. While the field of view extends to the equator, a dynamic examination paired with various gaze positions lets you easily continue your view to the mid periphery. 80° / 96° field of view 1.0x image magnification 1.0x laser spot magnification 11 mm working distance Optical design with high magnification enables 3D discernment of subtle macular and optic disc details Available in black, blue, gold, green, purple, red, silver Part Number: VS66

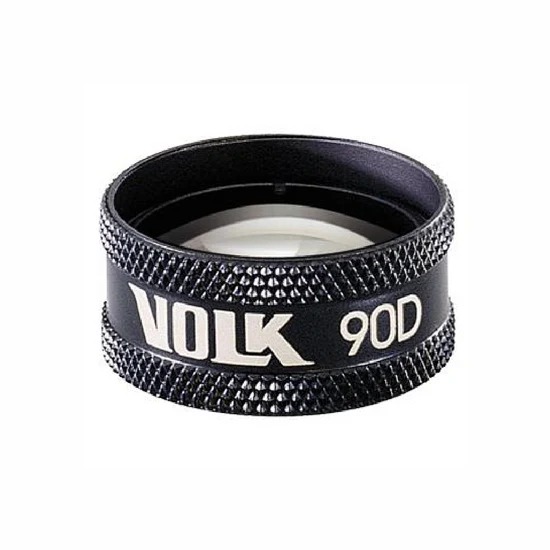

Ideal for Pan Retinal Exam and Small Pupil Examination Our Classic Series 90D Lens is the most widely recognized fundoscopy lens and the gold standard in exam rooms around the world and is perfect for general examination and retinal imaging. With its small profile and optical profile, it's a great lens for undilated retinal exams, and can even get through small pupils. 74° / 89° field of view 0.76x image magnification 1.32x laser spot magnification 7 mm working distance Simple to use - an ideal training lens for new students and residents Small diameter ring is excellent for dynamic fundoscopy and easy manipulation within the orbit Available in black, blue, gold, green, purple, red, silver Part Number: V90C

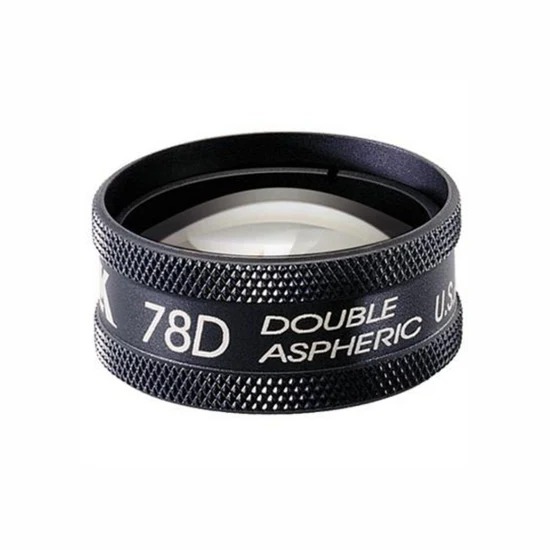

Ideal for General Diagnosis and Laser Treatment See more with the 78D Lens! Get clear and large views of the central mid-retinal regions with its double aspheric design and field of view. This lens is perfect for doctors who regularly see patients prone to glaucoma and other posterior pole abnormalities. It offers high magnification without drastically diminishing field of view. The 78D is popular as a general diagnosis lens among doctors who prefer a larger ring size than our smaller profile 90D, but dilation is necessary for optimal imaging. Technical Specifications 81° / 97° field of view 0.93x image magnification 1.08x laser spot magnification 8 mm working distance Provides great balance of magnification and field of view Optimized for use within range of motion of all slit lamps Available in black, blue, gold, green, purple, red, silver Part Number: V78C

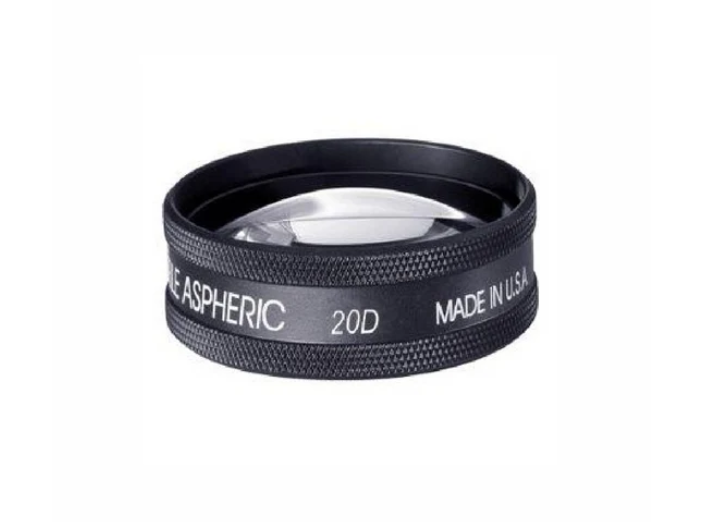

Ideal for General Diagnostics The clarity and precision of the Volk 20D BIO Lens make it a gold standard. In fact, this lens may be the most recognized lens around the world because it began the tradition of double aspheric lenses for BIO. It offers excellent field of view and magnification for the 20 D Lens. And with a working distance of 50 mm, you'll have a comfortable experience manipulating the lens. In addition to serving as a first line diagnosis tool, this lens is ideal for high-level central retinal examinations. Technical Specifications 46° / 60° field of view 3.13x image magnification 0.32x laser spot magnification 50 mm working distance Perfect balance of magnification and field of view for general diagnostic exams Also available in autoclave sterilizable (ACS®) design or single-use design Available in black, blue, gold, green, purple, red, silver Part Number: V20LC

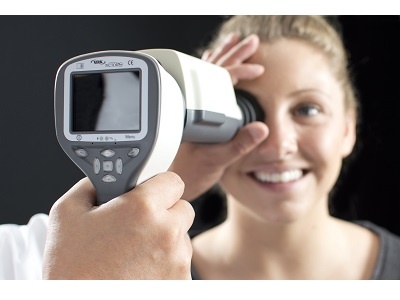

Pictor Plus is an advanced retinal camera that can take your practice places. From the exam room to on-location screenings, nursing home calls and everywhere in between. It is lightweight, weighing just 1lb and will shoot detailed images in daylight or darkness. The Pictor Plus portable imager moves with your practice and makes it possible to expand your services. Item Pictor Plus Portable Ophthalmic Imager Company Volk Optical, Inc. Price Inquire Features:- Versatile Images both retina and anterior segments Portable Fits in a small briefcase and weighs just 1lb. Non-mydriatic retinal imaging Pupils as small as 3mm Anterior imaging White or blue (fluoroscein) LED lighting Storage More than 1,000 high resolution jpg images on SD card Simple integration Images upload to PC via USB connection Improved image resolution Meets ISO fundus camera requirements Auto focus assist Senses optimal retinal view and automatically takes the image 9 fixation targets For a variety of retinal images Patient ID entry via keypad Facilitates patient records/folders Additional Wi-Fi PC connectivity Enhances portable capabilities Improved glare free anterior segment imaging Type :- Retinal Module :- Reflection free imaging with 10 illumination levels Up to 45° field of view Produces color and red free images for contrast Automatic and manual focusing Diopter compensation -20D to +20D Slit lamp mount adapts Pictor to any slit lamp Anterior Module :- White and blue LED light for standard and fluorescent imaging Auto and manual focusing 6x digital zoom

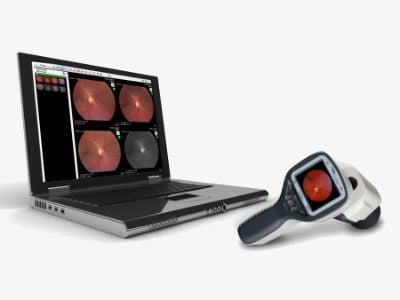

Volk Optical recently released Pictor Workstation — an add-on software platform for its Pictor Plus handheld imager. The new software reportedly increases the power and convenience of the Pictor Plus by helping to improve workflow and managing information and images taken with the device. It offers wireless connectivity and DICOM file support, so records can be managed without immediate access to a desktop computer. And up to nine images can be displayed at the same time for review and image comparison.

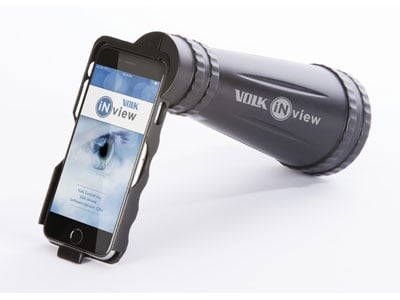

iPhone Fundus Camera The Volk iNview is an ophthalmic camera used to acquire wide-angle digital color images of the retina (fundus) using an Apple iPhone or iPod. Volk iNview is a combination product comprised of a mobile application (Apple App Store) and an indirect ophthalmoscopic lens attachment that fits for an Apple iPhone/iPod. Volk iNview is intended to take photographs of the retina of the eye for the purposes of general visualization & patient education. Leveraging the Power of the Apple iPhone with the Trusted Quality of Volk Optics. Item Volk iNview Company Volk Optical, Inc. Price Inquire Catalog Number VINVIEW Features Quickly & effortlessly capture fundus images for visualization & patient education. Facilitate doctor-patient discussions related to disease progression and treatment plan. Free mobile application available in the Apple App Store* (search Volk iNview) Weight (lbs)0.71 lbs/325g; 0.91 lbs/413g with iPod Touch Power Source Internal electronic camera device battery Working Distance 50mm Field Angle/Angle of View 50° / 80° Light Source LED Digital Resolution 918 x918 Pixels (843 Kpixels total, 466 Kpixel retina area) Camera iPhone iSight Camera (5s, 6, 6s, SE) 8 Mp or 12 MP Monitor iPhone Power Consumption 5 VDC Output (iPhone) Mydriasis Required Yes Fundus Focus Yes Video Monitor iPhone Video Monitor (5s, 6, 6s, SE) Fixation Targets Not Included Dimensions (W × H × D) 94mm x 180mm x (variable 134mm - 149mm)

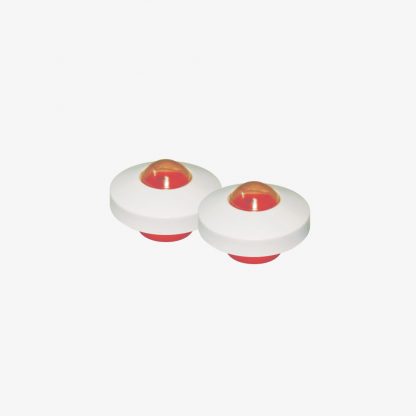

Phaco-i is a simulator eye for practicing the basic steps of phaco surgery and getting good hand foot coordination on the phaco machines. Can be stored at room temperature Only non biological materials used in components Can be used with a Practice head for better simulation Ideal training tool for phaco beginners to reduce the learning curve Very economically priced

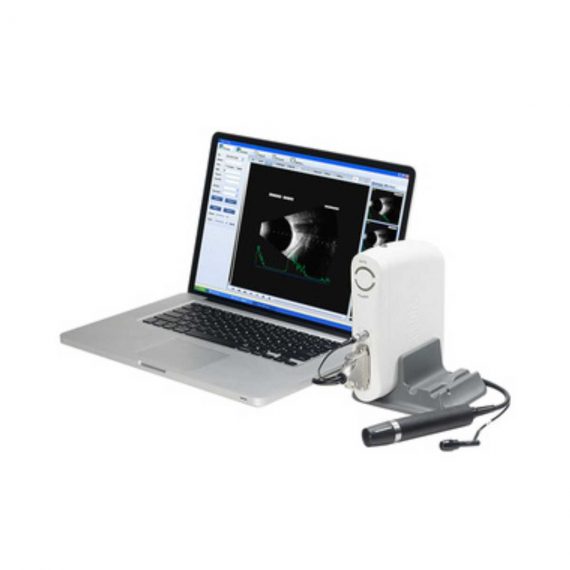

Software image workstation B, B+B, B+A, A modes Video review for 100 images PDF report output Optional 20MHz B Probe: vitreous plus Function A scan 1.Probe: 10MHz frequencies, with LED 2.Depth: 40mm 3.Precision: ±0.05mm 4.Eye mode: Phakic / Aphakic / Dense / Various IOL 5.Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average 6.IOL Formula: SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS, Stat. 7.Calculation: Average and standard deviation 8.Store: 10 Scanning results for each eye B scan 1.Probe: 10MHz/20MHz (optional), Magnetic driven, noiseless 2.Scanning Mode: Sector Scanning 3.Resolution: Lateral ≤0.3mm; Vertical≤0.2mm 4.Geometric Location Precision: Lateral≤10%; Vertical≤5% 5.Depth: 60mm 6.Enhance the part of vitreous body and retina 7.Gain of probe:30dB-105dB 8.Scanning Angle : 53° 9.Gray Scale: 256 10.False Color: Multi colors OTC 11.Measure Mode: distances, perimeter and area 12.Movies: 100 images movie review,AVI ZIP JPG format image output 13.Output: PDF format case report, connect to normal printer Others 1.Display Mode :B, B+B, B+A, A 2.Hint: preset keyword 3.Case Search: Multi-keywords 4.Working Platform: Windows XP, VISTA, WINDOWS7 5.User-defined report template
